Name: Double-head Precision Cutting Saw - Ambika
Availability: InStock

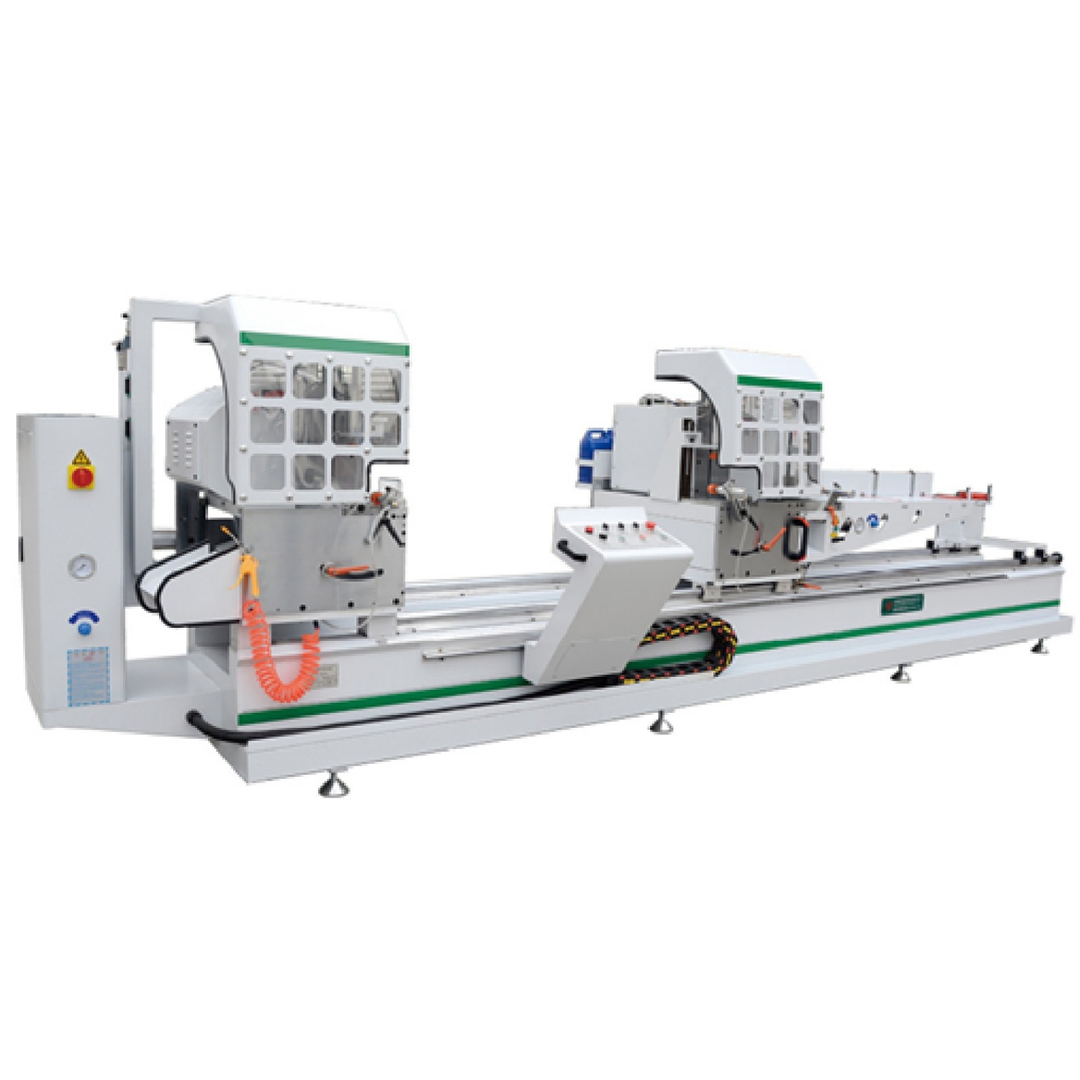

Double-head Precision Cutting Saw

The LGZ2-500×4200 is a heavy-duty Double-head Precision Cutting Saw designed for industrial aluminum and curtain wall stock. It features automatic $90^\circ$ and $45^\circ$ angle conversion and utilizes an imported linear guide kinematic pair for high-stability blade feeding. With a magnetic sonic digital display system for easy length reading and a liquid damping system for smooth operation, it provides the perfect balance of precision and productivity.

Ambika Machine Offer

Hurry and get discount upto 10% on all products at Ambika Machine and Tools Store.

Category Power Tools

₨ 0.00

Inquire: Get a better price

Inquire on WhatsApp

Inquire on Viber

Shipping & Returns

Free Standard Delivery is available on all online orders above Rs. 5,000 (calculated on the product subtotal before taxes, coupon discounts, and optional add-ons). Extra delivery fees may apply for oversized, bulk, or special-handling items—these charges will be clearly shown on the product page and added to your shipping total at checkout. Most standard orders arrive within 3–7 business days, while items shipped directly from partners or to remote locations may take longer. This offer is not valid for international deliveries or express shipping requests.

Learn more about our Returns & Cancellations.

Description

Precision Engineering for Aluminum Fabrication

The LGZ2-500×4200 Series from Care Machinery is built to meet the rigorous demands of the modern door, window, and curtain wall industries. The machine’s core strength lies in its high driving and positioning accuracy, ensuring that every cut meets strict architectural tolerances.

📊 Technical Specifications

Feature	Specification
Model	LGZ2-500×4200
Power Supply	$380\text{V} / 50\text{Hz}$
Input Power	$4.9\text{kW}$
Air Pressure	$0.5\text{--}0.8\text{MPa}$
Blade Rotational Speed	$3100\text{ r/min}$
Saw Blade Specification	$D=500\text{mm}, d=30\text{mm}$
Cutting Length	$380\text{--}4200\text{mm}$
Cutting Angles	$90^\circ, 45^\circ$ (Automatic)
Max Cutting Width	$135\text{mm}$
Outside Dimensions	$5800 \times 1750 \times 1600\text{mm}$
