Name: Double-Head Fixed 45° Precision Cutting Saw - Ambika
Availability: InStock

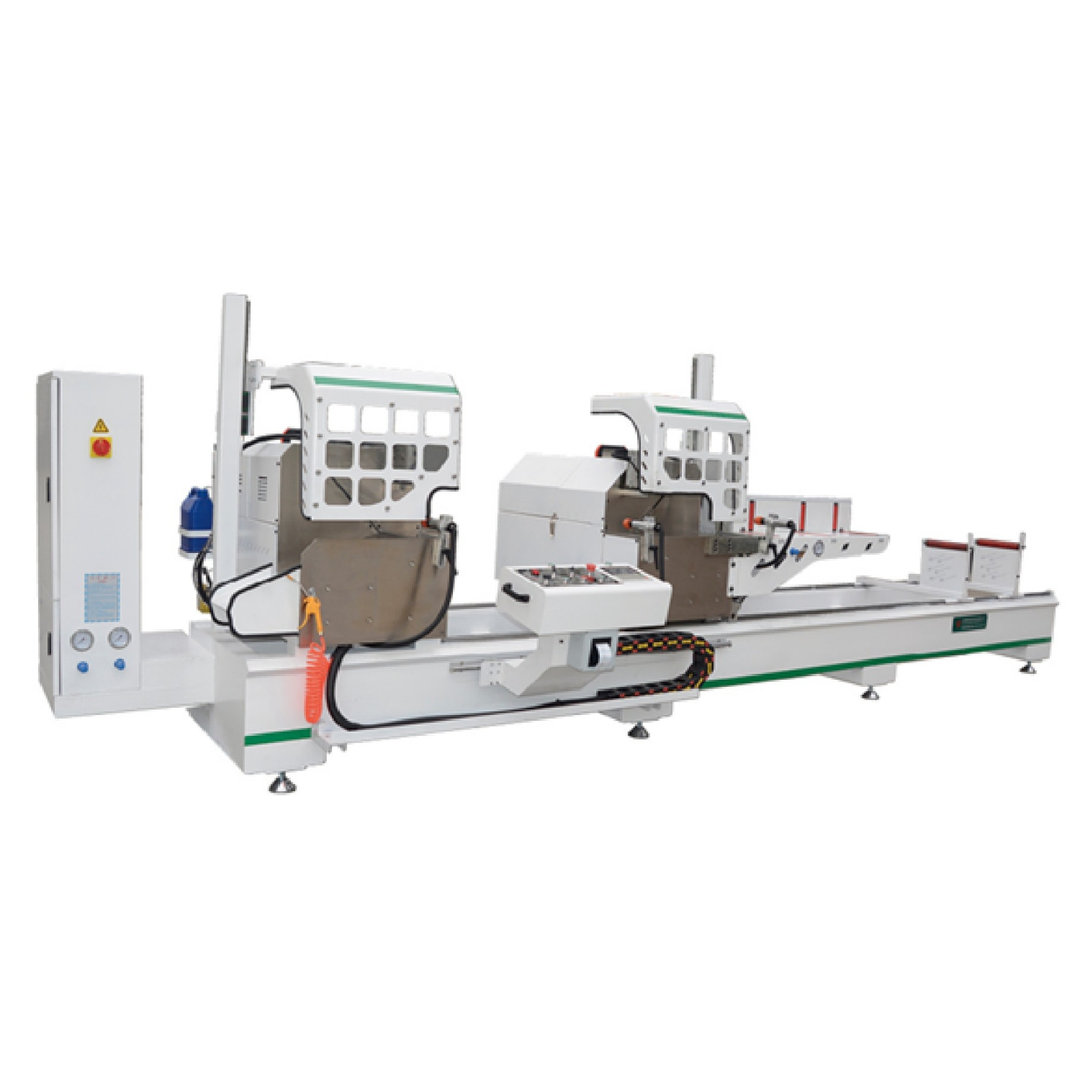

Double-Head Fixed 45° Precision Cutting Saw

The LJGB-550×4200 is a professional Double-Head Fixed $45^\circ$ Precision Cutting Saw designed for high-volume aluminum fabrication. Available in both Internal (Within) and External (Outside)

45^\circ

configurations, these machines utilize a direct-drive motor spindle to maximize power efficiency and an oil-mist cooling system to ensure a burr-free, mirror-like finish. With a massive

550\text{mm}

imported carbide blade and hydraulic damping for uniform feeding, it is the ideal solution for solar frames and high-end curtain wall projects.

Ambika Machine Offer

Hurry and get discount upto 10% on all products at Ambika Machine and Tools Store.

Category Power Tools

₨ 0.00

Inquire: Get a better price

Inquire on WhatsApp

Inquire on Viber

Shipping & Returns

Free Standard Delivery is available on all online orders above Rs. 5,000 (calculated on the product subtotal before taxes, coupon discounts, and optional add-ons). Extra delivery fees may apply for oversized, bulk, or special-handling items—these charges will be clearly shown on the product page and added to your shipping total at checkout. Most standard orders arrive within 3–7 business days, while items shipped directly from partners or to remote locations may take longer. This offer is not valid for international deliveries or express shipping requests.

Learn more about our Returns & Cancellations.

Description

Specialized $45^\circ$ Cutting Excellence

The LJGB-550×4200 Series is built for industries where the $45^\circ$ miter joint is the standard. Unlike universal saws that tilt, these machines feature fixed $45^\circ$ cutting heads. This fixed geometry ensures absolute repeatability and higher precision, making them the preferred equipment for solar energy frames and high-performance architectural aluminum.

📊 Technical Specifications Comparison

Feature	Within 45∘ Fixed Model	Outside 45∘ CNC Model
Power Supply	$380\text{V} / 50\text{Hz}$	$380\text{V} / 50\text{Hz}$
Input Power	$6.5\text{kW}$	$6.5\text{kW}$
Blade Speed	$3100\text{ r/min}$	$3100\text{ r/min}$
Saw Blade Specs	$D=550\text{mm}, d=30\text{mm}$	$D=550\text{mm}, d=30\text{mm}$
Cutting Length	$480\text{--}4200\text{mm}$	$360\text{--}4200\text{mm}$
Fixed Angle	Internal $45^\circ$	External $45^\circ$
Max Cutting Width	$155\text{mm}$	$155\text{mm}$
Cooling System	Oil Mist Cooling	Standard Cooling
Outside Dimension	$5800 \times 1750 \times 1600\text{mm}$	$5800 \times 1750 \times 1600\text{mm}$
